November 2019, HDL Works announces the release and immediate availability of
the PCB connectivity visualization and verification tool.
ConnTrace is a new and easy to use tool, to visualize and verify how components (including FPGAs) connect to each other on 1 or multiple PCBs. It can handle (rotated) connectors as well as shrouds on (through) a backplane. The PCB connection view shows traces for all signals that can be reached through the connectors. Filters and sorting allow you to concentrate on the potential problems.

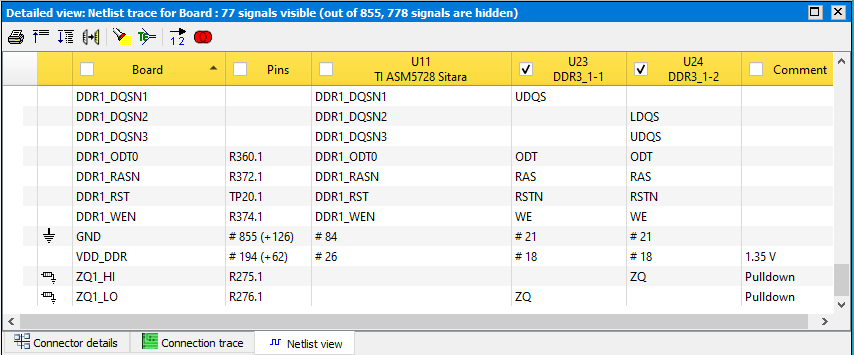

New in ConnTrace 2.0 is the Netlist view. This view shows all signals defined in a netlist in a tabular manner, with the connected pins, for one board or multiple boards. You can add any number of components to the view to easily see how they connect to each other. When present in the PCB netlist file ConnTrace will show pin labels, like DDR3_A1 instead of just the pin number (AE3). Check boxes in the header in combination with sorting and name filtering allow you to concentrate on areas of interest.
Comment can be added to each signal.

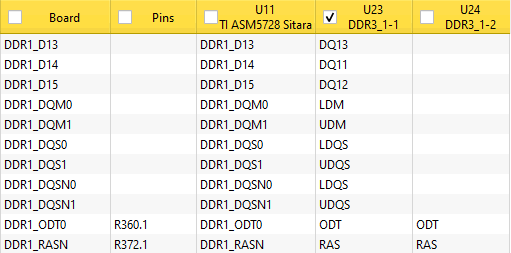

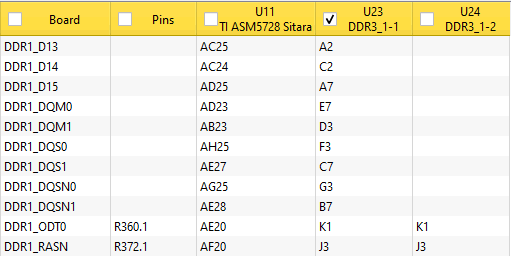

ConnTrace uses pin labels in the columns of the components when available in the PCB netlist format. The pin labels make it easier to verify connectivity. You can add any number of components to the view to easily see how they connect to each other. in the example below it easy to see that data lines D14 and D15 have incorrect connections.
FPGA constraint files can now also be used as a data source. FPGA bank number, signal direction and IO type are shown in additional columns
ConnTrace 2.0 is available now and can be downloaded and evaluated from the company website.
