EASE: Design documentation

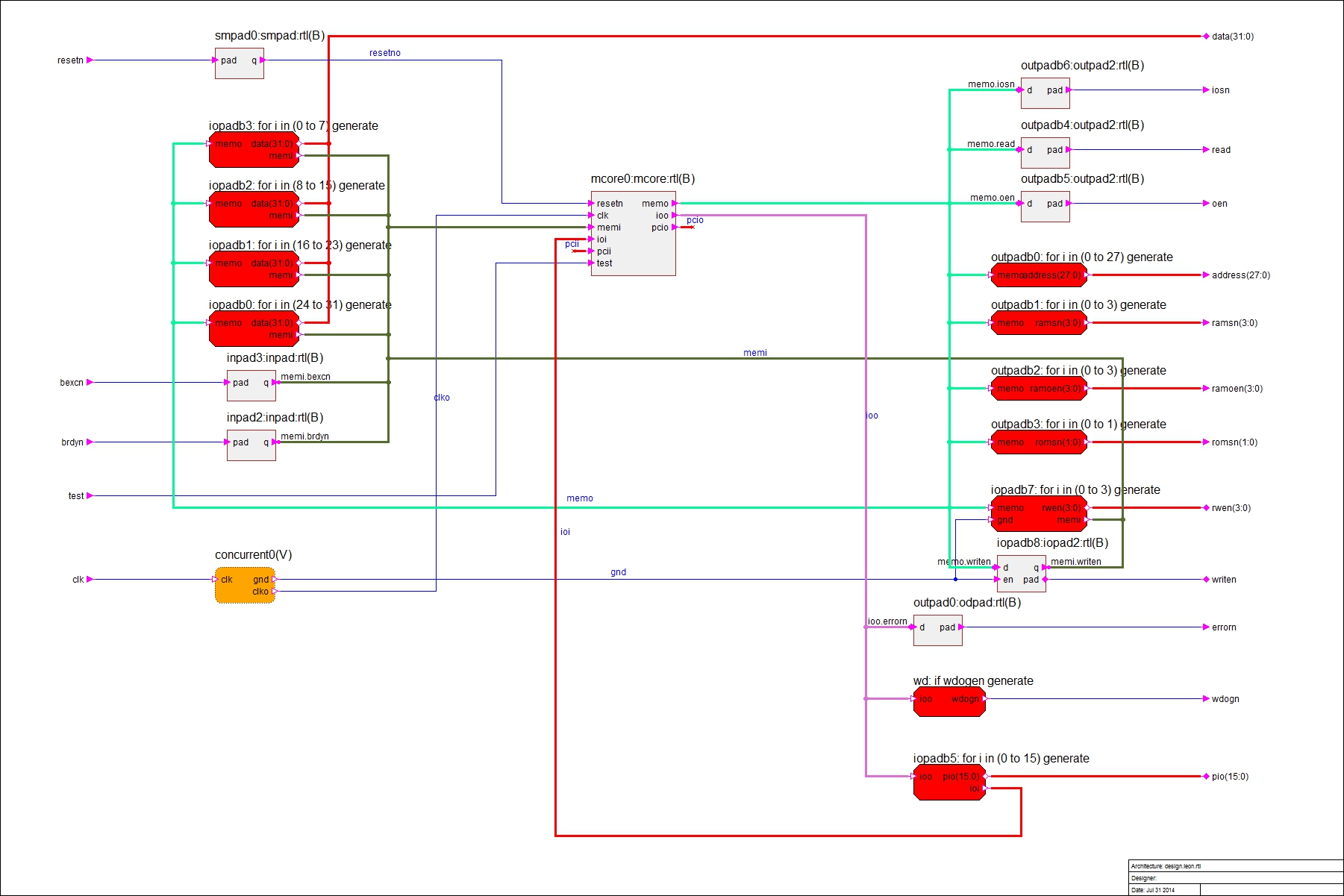

Leon toplevel diagram

When designing using EASE your documentation is halfway done. Any browser view or diagram can be exported to various graphical formats like TIFF, JPEG, PNG and included in Word (or other) documents or document formats like Postscript and Adobe PDF.

The HTML Generator allows you to export the whole project on your intranet or to the internet. With a single click EASE will export all diagrams, side data, generated HDL code and the project structure to the desired location in HTML and SVG files. SVG (Scalable Vector Graphics) is the W3C standard XML-based imaging model started by Adobe. Graphics created in SVG can be scaled without loss of quality across various platforms and devices. The exported HTML contains hot links in the diagrams and the project structure to easily navigate through your design.

Click here to see a complete mixed VHDL and Verilog HTML example (Will open a new window)
